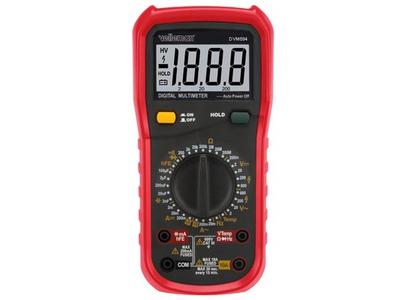

Velleman DVM894 Digital Multimeter

Dette digitale måleinstrument / multimeter fra Velleman har hele 32 måleområder,

Blandt andet måling af AC/DC spænding (op til 600V), AC/DC strøm (op til 10A), modstand, kondensator kapacitet, frekvens og temperatur.

Egenskaber:

• CAT III 600V

• low-battery indication, overload protection and automatic power-off

• transistor, diode, and audible continuity test

• DC current 10 A (max.15 minutes), DC voltage max. 600 V

• AC current 10 A (max.15 minutes), AC voltage max. 600 V

• resistance measurements: up to 200 Mohm

• capacitance measurements: from 2 nF to 100 µF

• frequency measurements: max. range 20 kHz

• K-type thermocouple measuring range: -20 °C to 250 °C (measuring range can be extended to 1000 °C with suitable thermocouple)

• with holster

Tekniske detaljer:

• DC voltage: 200 mV / 2 V / 20 V / 200 V / 600 V

  • basic accuracy: ± (0.5 % of reading + 3 digits) for 200 mV to 200 V range; ± (0.8 % of reading + 3 digits) for 600 V range

  • input impedance: 10 Mohm

  • maximum input: 1000 VDC or 750 VAC rms; 250 VDC or 250 VAC rms for 200 mV measurement range

• AC voltage: 200mV / 2 V / 20 V / 200 V / 600 V

  • basic accuracy: ± (0.8 % of reading + 3 digits) for 2 to 200 V range; ± (1.2 % of reading + 3 digits) for 750 V range

  • input impedance: 10 Mohm

  • frequency range: 40 Hz to 400 Hz sine wave rms (average response); 200 Hz for 750 V

  • maximum input: 1000 VDC or 750 VAC rms; 250 VDC or 250 VAC rms for 200 mV measurement range

• DC current: 2 mA / 20 mA / 200 mA / 10 A

  • basic accuracy: ± (0.8 % of reading + 1 digits) for 2 mA to 20 mA range; ± (1.5 % of reading + 1 digits) for 200 mA range; ± (2.0 % of reading + 5 digits) for 10 A range

  • overload protection: F250mA/250V fuse for mA measurement range; F10A/500V fuse (ceramic) for 10 A measurement range

• AC current: 20 mA / 200 mA / 10 A

  • basic accuracy: ± (1.0 % of reading + 5 digits) for 20 mA range; ± (1.8 % of reading + 5 digits) for 200 mA range; ± (3.0 % of reading + 7 digits) for 10 A range

  • overload protection: F250mA/250V fuse for mA measurement range; F10A/500V fuse (ceramic) for 10 A measurement range

• resistance: 200 / 2 K / 20 K / 200 K / 2 M / 20 M / 200 Mohm

  • basic accuracy: ± (0.8 % of reading + 3 digits) for 200 ohm range; ± (0.8 % of reading + 2 digits) for 2 kohm to 2 Mohm range; ± (1.0 % of reading + 2 digits) for 20 Mohm range; ± (6.0 % of reading + 10 digits) for 200 Mohm range

  • overload protection: 250 VDC or 250 VAC rms

• capacitance: 2 nF / 20 nF / 200 nF / 2 µF / 100 µF

  • accuracy: ± (4.0 % of reading + 3 digits) for 2 nF to 2µF range; ± (6.0 % of reading + 10 digits) for 100 µF range

  • overload protection: fuse F250mA/250V

• inductance: - accuracy: -

• frequency: 20 kHz

  • basic accuracy: ± (2.0 % of reading + 5 digits)

  • overload protection: 250 VDC or 250 VAC rms

• temperature: -20 °C to 1000 °C with suitable thermocouple (max. 250 °C with included thermocouple)

  • basic accuracy: ± (5.0 % of reading + 4 digits) for -20 °C to 0 °C range; ± (2.0 % of reading + 3 digits) for 1 °C to 400 °C range; ± (2.0 % of reading + 5 digits) for 401 °C to 1000 °C range (included thermocouple max. 250 °C!)

  • over range indication: yes, "1"

• continuity buzzer: yes

• transistor test: yes

• diode test: yes

• low-battery indication: yes

• maximum display: 1999

• LCD display size: 31 x 61 mm

• ranging mode: manual

• data hold: yes

• backlight: no

• Størrelse: 195 x 95 x 55 mm

• weight (with battery): ± 366 g

• Strømforsyning: 1x 9 V battery (6F22)

• packing: blister

• Mefølgende dele: Eng. brugermanual, teslprober, hylster, batteri, K-type temperaturprobe (250 °C), multifunktionel sokkel

• auto power-off: yes
