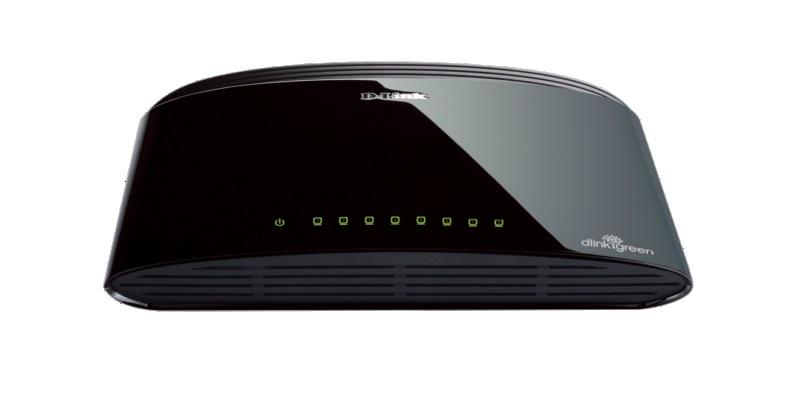

D-Link DES-1008D 8-Port Desktop Switch 10/100Mbps

D-Link DES-1008D 8-Port Desktop Switch 10/100Mbps

• 8 x 10/100Mbps Auto-sensing on All Ports
• Up to 200Mbps per Port
• All ports support half/full-duplex
• Compact palm-sized

The D-Link DES-1008D is a Dual-Speed 8-port 10/100Mb Ethernet/Fast Ethernet NWay auto-negotiating Switch. It is designed to eliminate unnecessary traffic, and relieve congestion by delivering dedicated bandwidth for each of the eight ports.

The DES-1008D can be deployed with multiple high-speed servers for shared bandwidth to 10Mbps or 100Mbps workgroups. With the highest bandwidth at 200Mbps (100Mbps in full-duplex mode), any port can provide workstations with a congestion-free data pipe for simultaneous access of the server.

The DES-1008D complies with IEEE 802.3 10BASE-T and 802.3u 100BASE-TX, which specify NWay auto-negotiation, Flow control in half-duplex mode.

The DES-1008D combines dynamic memory allocation with store-and forward switching to ensure that the buffer is effectively allocated for each port, while controlling the data flow between the transmit and receive nodes to guarantee against all possible packet loss.

The DES-1008D includes added brackets, maximizing space while increasing port density.

Features

• (8) 10/100Mbps RJ-45 Ports
• Auto-Senses Cable Type (Auto-MDIX)
• Half/Full Duplex Support
• Auto-Negotiation
• Wire-Speed Reception and Transmission
• 2K MAC Look-Up
• Broadcast Storm Protection
• Back Pressure Flow Control for Half-Duplex
• Automatic MAC Address Learning
• Switching Method: Store-and-Forward
• RAM Buffer: 128Kbytes
• Protocol: CSMA/CD
• Complies with: 802.3 10Base-T, 802.3u 100Base-TX, 802.3x Flow Control
• Certifications: FCC Class B, VCCI Class A, CE Mark
• LED's: Power, Collision, Link/Act (5)
• Dimensions: 19.2cm x 11.8cm x 3.2cm
• Weight: 301gms
• AC Input: 7.5V/1A , 3.6Watts (max)
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 70°C
• Humidity: 10%-90% RH, non-condensing
